Product Overview
Brand: T Tocas
Color: Black
Features:

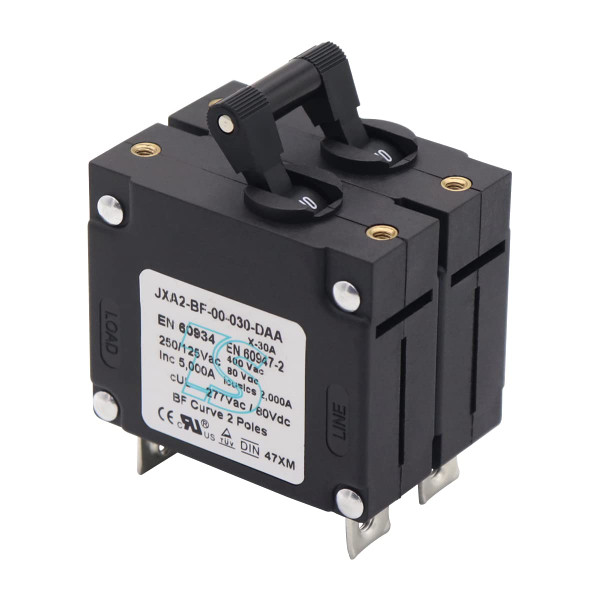

- 30 Amp, Double pole, toggle switch，panel mount,Magnetic Hydraulic 30A Circuit Breaker
- Combines switching and circuit protection into a single device.
- Life : 10,000 Switching opearation with 6,000 at rate current
- Voltage:125/250/277/415Vac; 65/80 Vdc;Temperature : -40 C to +85 C
- Regulatory Sepcification cUL1077; EN60934; EN60947; DIN; CE
Details: Family:Hydraulic Magnetic Circuit Breaker Voltage:125/250/277/415; 65/80 Vdc Rated Current: 30A Mounting:Rear Mounted, Operating Temperature:-40oC (-40oF) to 85oC (185oF) Interrupt Capacity: 5,000A (PC1) 3,000A @ 250 Vac (SC) 1,000A @ 415 Vac (SC) 2,000A @ 80 Vdc (SC) RoHS:Y Regulatory Sepcification:cUL1077; EN60934; EN60947; DIN; CE Technical Specification Temperature : -40 C to +85 C Shock : 50G, 11ms or 100G, 6ms Vibration : 10 to 500 Hz. 10G(1.6 mm to 50 Hz) Life : 10,000 Switching opearation with 6,000 at rate current Approximate weight: 1P-85g Dielectric Streight: 2,500 Vac 50 / 60 Hz Rated Current: 1-100A according requirement Torgue Allowed for inserts screw : M3 / 6-32 (0.6'0.8 Nm) Package: 1pcs Double Pole Hydraulic Magnetic Circuit Breakers
