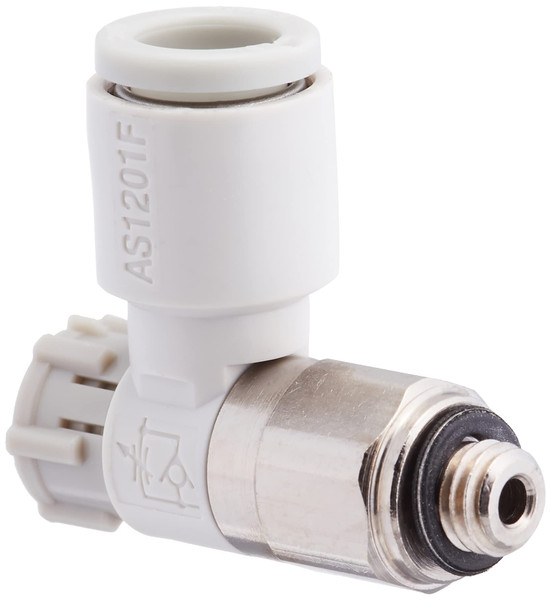

Product Overview
Brand: SMC
Color: m5
Features:
- Body Size: M5x0.8
- Push-lock system improves needle lock workability
- Larger handle
- Improved tube attachment
- Maximum input input reduction by 30% (8N)
- Breakaway rate Max.20% (5N) reduction
- Tube pulling strength ensures the same level as the current product
- Fluid Used: Air
- Maximum Working Pressure: 1 MPa
Details: Body Size: M5x0.8 Push-lock system improves needle lock workability Larger handle Improved tube attachment Maximum input input reduction by 30% (8N) Breakaway rate Max.20% (5N) reduction Tube pulling strength ensures the same level as the current product Fluid Used: Air Maximum Working Pressure: 1 MPa Minimum Working Pressure: 0.1 MPa Ambient temperature and fluid temperature range: -5°C - 60°C (non-freezing) Applicable Tube Material: Nylon, Soft Nylon, Polyurethane, FEP, PFA. Please check the model configuration chart in the product sub-image for product details. Customers with knowledge and skill in pneumatic equipment should choose and use this product.
