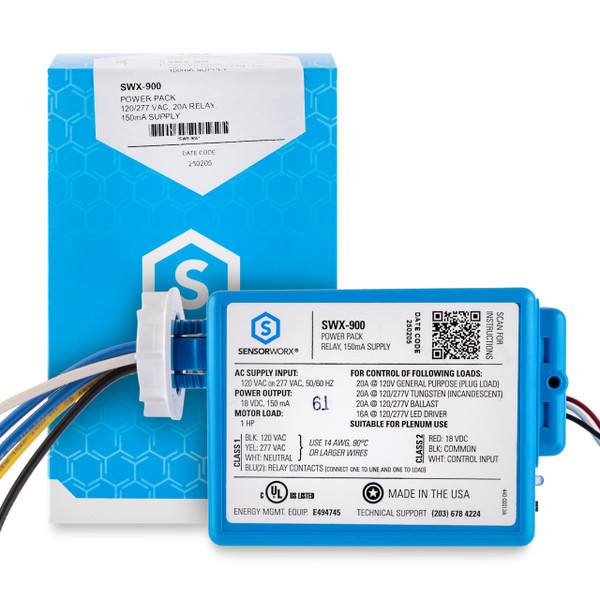

Product Overview
Brand: SENSORWORX
Color: White
Features:
- Power Supply: Provides a 18VDC power to low voltage sensors, photocells, and wall stations. Operating voltage of 120/277 VAC, generates 150 mA class 2 power total (80 mA for connected devices)
- Switches Line Voltage Loads: Switches on/off up to 20A of 120/277 VAC Class 1 line power to connected lighting loads as directed by sensors.
- Optimized Switching Timing: Rated to switch fully loaded circuits and utilizes a microprocessor to optimize its switching timing. This ensure a long relay life even when controlling high-inrush LED lighting.
- Integrated Test / Programming Button: The button on this device allows for instant wiring validation. Upon button press, lighting will toggle off and on to ensure that wiring is correct. LED also blinks a heartbeat to indicate normal operation
- Quality and Assurance: Proudly made in the USA, 5-year warranty. UL Listed, RoHs Compliant, BAA Compliant, BABA Compliant TAA Compliant, Plenum Rated (UL 2043).
Details: SENSORWORX power pack controllers transform incoming line voltage power to Class 2 low voltage as needed by sensors or other control devices. Additionally, they switch on/off power to the connected lighting load as directed by the sensors and controls. SENSORWORX power packs utilize a powerful microprocessor to optimize its switching timing in order to ensure long relay life even when controlling high-inrush LEDs and ballast loads. As with all SENSORWORX products, these power packs are easy to install and incorporate features which reduce contractor labor time. An elongated chase nipple with snaps for quick installation and an optional snap-on low voltage wire chamber make for a hassle free contractor experience. All SENSORWORX products are proudly made in the USA.
