Product Overview
Brand: TREXFLOW TF
Color: Black
Features:

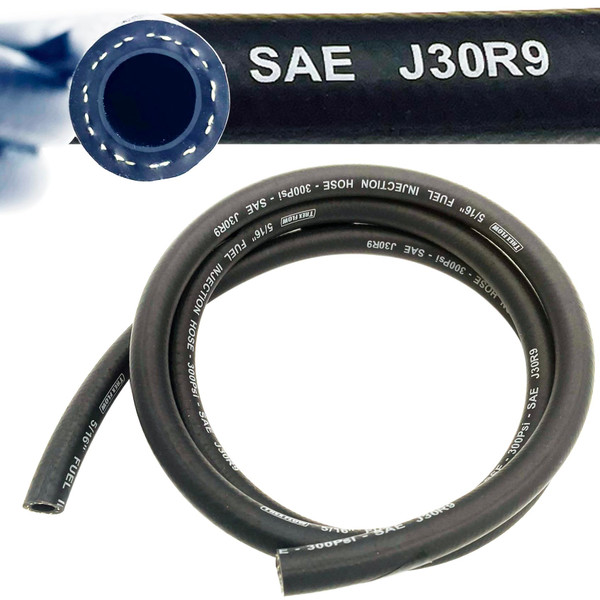

- [Spec.]: SAE30R9/SAE J30R9 rated fuel injection hose; ID 5/16" (8mm), OD 0.55" (14mm); 5FT Length, designed for fuel injection systems.
- [Spec.]: The push on fuel hose Temp. Range is wide: Low & High Temp. -40F°~302F°; Working pressure 300 psi, burst pressure 8.3Mpa.
- [Feature:] The SAE30R9 Fuel injection hose will not deteriorate, dry, harden, or permeate fuel (emit fuel vapor) with the presence of ethanol in gasoline.
- [Feature:] Fuel injection hose 5/16 with inner Fluoroelasomer layer (FKM); Applicable with Gasoline, E85+, racing fuels, methanol, diesel, biodiesel B5, B10,B20, Lubrication oil, etc.
- [Quality Control] ISO 9001 & IATF 16949 Certified, Strict and sufficient QC control in manufacturing and inspection process.
Details: Features · The SAE 30R9 fuel hose will not deteriorate, dry, harden, or permeate fuel (emit fuel vapor) with the presence of ethanol in gasoline. · This hose is also ideal for use in crankcase postive pressure ventilation (PCV) and evap lines. · SAE J30 R9 rating for excellent fuel impermeability Epichlorohydrin (ECO) rubber outer cover · Smooth (FKM) fluoroelastomer rubber inner layer · Reinforced with an embedded aramid fiber braid · For use with push-lock style fittings (not for use with re-usable "cutter" style or crimp AN hose end fittings) Application Notes · This hose should NOT be submerged in fuel or used inside of fuel tanks. · A hose clamp is required when using smooth hose barb fittings. · Hose clamps are recommended when using push-lock fittings and required when operating pressure is above 10 psi. Operating temperature range (all sizes): · -40°F (-40°C) to 300°F (150°C) operating temperature Vacuum at 20% deflection (all sizes): · 23.9 in/Hg (810 mbar)
