Product Overview
Brand: Gaoyeer
Features:
- Wide Applications：Compatible with Coleman furnace models starting with DGAA, DGAH, DGAM, DGAT, DLAS and more. Fit for the following models: DGAA056BDTA, DGAA056BDTB, DGAA070BDTA, DGAA070BDTB, DGAA077BDTA, DGAA077BDTB, DGAA090BDTA, DGAA090BDTB ; DGAH056BBSA, DGAH056BBSB, DGAH077BBSA, DGAH077BBSB ; DGAM056BDE, DGAM075BDD, DGAM075BDE, DGAM056BDF, DGAM075BDF ; DGAT056BDD, DGAT056BDE, DGAT056BDF, DGAT070BDD, DGAT070BDE, DGAT070BDF, DGAT075BDD, DGAT075BDE, DGAT075BDF, DGAT090BDD, DGAT090BDE, DGAT090BDF ; DLAS056BDE, DLAS056BDF, DLAS056E, DLAS075BDD, DLAS075BDE, DLAS075BDF.
- Replace Part Number：Replacement for York, Coleman, Evcon, Luxaire furnace circuit board. For example, it replaces the following part number:7956-318P/A, 7956-318P, 7956-319P, 7956-3191, S1-7956-319P, 7990-318, 7990-318P, 7990-318P/A, S1-7990-318P, S1-7990-318P/A, 7990-319, 7990-319P, S1-7990-319P, 7990-320P, 031-01910-000, 031-01932-000, 031-01932-001, 031-01932-002, 1012-956, 1012-83-9561, 1012-956A, ICM2801, CIB7990, 082656.
- Technique Information: Voltage Range: Line (98 to 132 VAC) @ 60Hz. lgnitor: 5A @ 120 VAC. Cool Blower: 10A, 2 HP, 240 VAC. Heat: 5A, 240 VAC. Inducer Motor. 4A FLA, 8A LRA @ 120 VAC. Gas Valve: 1.5A @ 30 VAC.

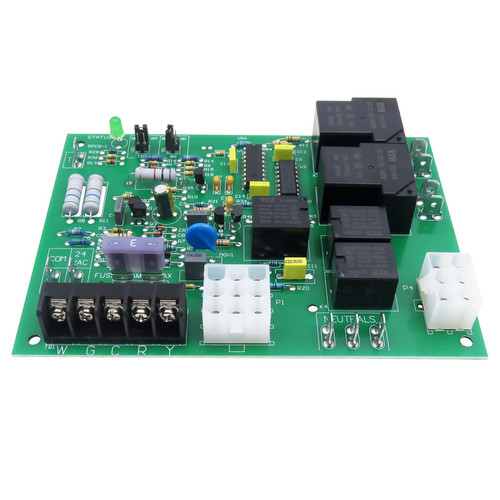

- High quality: Constructed with durable materials and subject to rigorous testing. Meanwhile, the S1-7990-319P Furnace Control Circuit Board has the following functions and features: controlling the exhaust motor, blower control, hot surface igniter and gas valve. Monitoring timing, ignition test, flame sensing and locking. Microprocessor-based. Reverse polarity protection, locking safety function. Status LED fault code to help troubleshoot.
- 12 months after-sales service: we provide comprehensive after-sales service, if you encounter any problems on the way to shop, you can tell us through Amazon, we will try to solve the problem and provide solutions.
