Product Overview
Brand: LBY
Color: Red
Features:

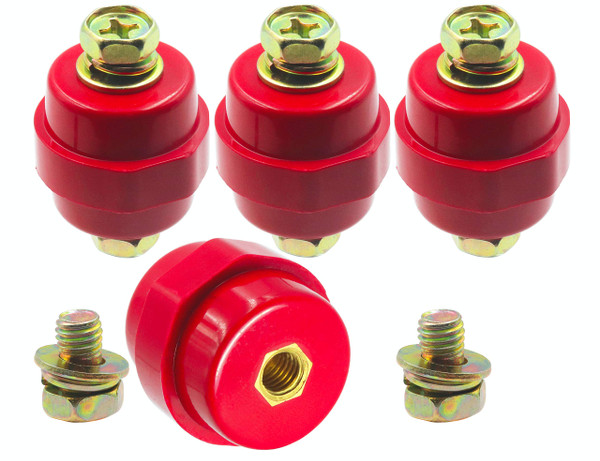

- 1.Red resin SM-30(with screw)enhanced busbar insulator connector, complex insulators.
- 2.Material: resin; Colour: red.
- 3.Size : SM-30: product height: 30mm(1.18'').
- 4.Contains: 4 pieces, with screw(M8).
- 5.Use: widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor alumnium busbar, etc, play the role of minsulation and connection.
Details: LBY Busbar Insulator SM-30 Polyester Standoff Insulators with Screw ● Product: - SM-30 - Height: 30 mm - Material: resin - Nut size: M8 - Nut material:copper - Screw hole depth:10mm - Strength: axial tensile 2000N, bending 4000N, tightening torque 10N/ m - Insulation resistance >500MΩ - Electrical properties: Operating voltage:600V, pulse voltage:3000V - Leakage current <1mA at 2000V operating voltage - Minimum arc distance: 10 (mm) ● Package: - SM-30 -------- 4pcs ● Description: - SM-30 with screw High-strength insulator,complex insulators. - The product is generally cylindrical, with one screw hole at each end and a screw to fix the line that needs to be connected. - Widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor alumnium busbar, etc, play the role of insulation and connection. - Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance.Excellent texture and good workmanship are your choice.
UPC: 663274582773
EAN: 0663274582773
