Product Overview
Brand: KETOTEK
Color: Gray
Features:
- Two Meters in One. Versatile energy meter single phase supporting both single circuit and dual circuit monitoring. Eliminates the need for two separate meters. Ideal for tracking separate loads (e.g., flat/common areas, main/sub circuits) with just one compact unit.
- 6 in 1 Energy Meter. One interface displays 6 kinds of measurement parameters at the same time, including voltage: AC 40.0-300.0V, Current: AC 0-100.0A, Active power: 0-30000W, Electric energy: 0-99999kwh, Frequency: 45.0Hz-65.0Hz, Power Factor: 0.00-1.00PF.

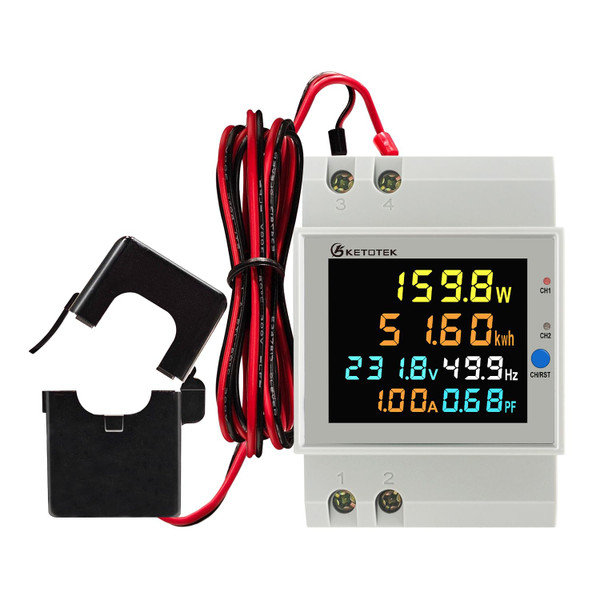

- High Accuracy with 2 x 100A CTs. This KWH meter comes with an external current transformer and a built-in current transformer. It is used to monitor the electricity usage data of two circuits separately. The split-core current transformer can be quickly installed without modifying the circuit or cutting off the power. Press the 'CH/RST' button to switch channels.
- Full-View Colour LCD. This electricity usage monitor din rail features a clear, full-angle colour LCD display for easy reading of voltage, current, and kWh in various lighting conditions.
- More Features. 1. Data reset for multiple measurement needs. Press and hold 'CH/RST' for 5 seconds to reset the electricity meter. 2. Automatically saves measured energy data during power outages and resumes cumulative measurement when power is restored, ensuring accurate billing without data loss.
