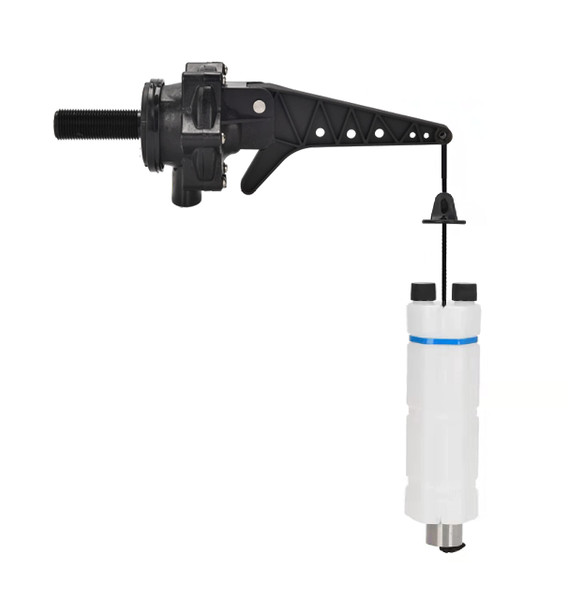

Product Overview
Brand: IMXMI
Features:
- Patented TANKBUDDY VALVE Design: This patented product is suitable for water tanks filled by running water or pressure systems controlled by water pumps, featuring an adjustable level difference from 50mm up to 2.5m to minimize starting and stopping of running water or pump systems (level difference accepts customization)
- Wide Range of Applications: Suitable for water tanks, water towers, water pools, irrigation systems, animal drinking stations, spray equipment, swimming pools, and more
- Simple Working Principle: Fits easily through thin-walled tanks or screws into threaded tank inlets. As the tank empties, the float travels down the cord until hitting the level stopper, opening the valve immediately for full flow. The float rises as water fills until it hits the level adjuster, lifting the arm to shut down the valve
- High Performance Advantages: Features high flow capacity, easily adjustable start and stop levels providing water level differentials from 50mm to 2.5m, minimizes pump operation, includes Valve Seal Access System for quick seal access, and is compatible with all makes and models of tanks
- Complete Installation Support: Instruction manual is included in the package for easy installation and use according to the provided guidelines
- Large 1/2 Inch High Flow Design: The 15mm float valve with double water level control provides large water discharge capacity and adjustable water level settings for efficient tank management
Details: Installation Instructions 1. Flush Debris from pipelines thoroughly before fitting 2. Ensure valve is mounted horizontally in tank with outlet pointing down 3. Use thread seal tape on Inlet thread 4. Inject water into floats up to water limited line 5. Set level stopper at desired approximate lower on position and tie off cord at end of arm. (Use double hole end loop system for easy adjustment and tie off) 6. Ensure float is in correct position between stops 7. Set adjustable level adjuster for desired off position 8. Cut off excess cord to desired length
