Product Overview
Brand: Fayelume
Color: Black
Features:

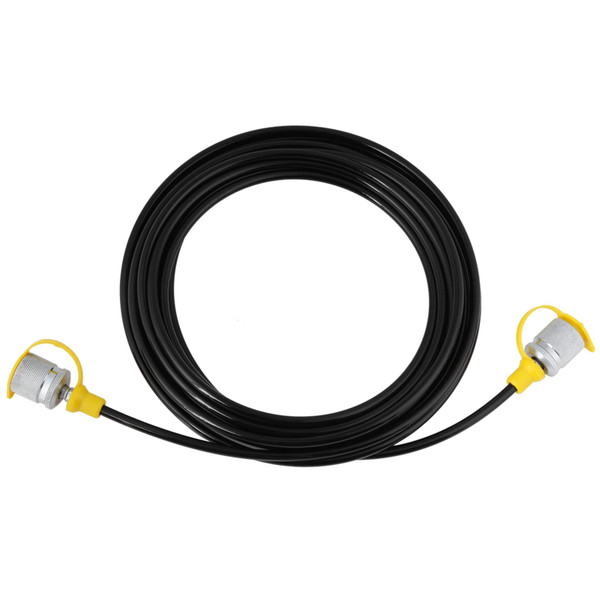

- Long Distance Flexible Operations: Hydraulic test hose 5 meters / 16.4 feet standard length design, easy to meet the needs of all kinds of equipment hydraulic test long distance connection, operate without space limitations
- Solid Sealing Structure: The test hose advanced technology manufacturing, M16*2 female connector adaptability, 2mm ID, 5mm OD, thickness 1.5mm, nominal diameter 2mm, the overall good design, good sealing
- Stabilized Performance: The test hose can work stably in the temperature range of - 40℃ to 120℃, and maintain efficient transmission under 64MPa working pressure, with a minimum burst pressure of 160MPa
- Convenient and Lightweight Design: The test hose weighs only 172 grams, with a minimum bending radius of 30mm for flexible and easy handling, and the black color combines practicality and aesthetics, and the single package meets the needs of quick use
- Multiple Scenarios: This hose is specially designed for hydraulic system point pressure testing and fluid transfer, applicable to a variety of equipment measurement, becoming an important partner for industrial testing and fluid transfer
Details: Description: This hose is used for test the point pressure in the hydraulic pressure system and conduct the liquid substance. Advanced construction, good sealing, fixed installation. Specification: Temperature range: -40℃-120℃ Allow Work Pressure: 64MPa Minimum burst pressure: 160MPa Application: for measuring tube of various equipment Hose Connector: M16*2 female Nominal diameter: 2mm Thickness: 1.5mm Hose I.D.: 2mm Hose O.D.: =5mm Minimum bend radius: 30mm Hose length: Approx. 5 meter / 16.4ft Color: Black Weight: 172g Quantity: 1pc Package List: 1 x Hydraulic pressure Test Hose
