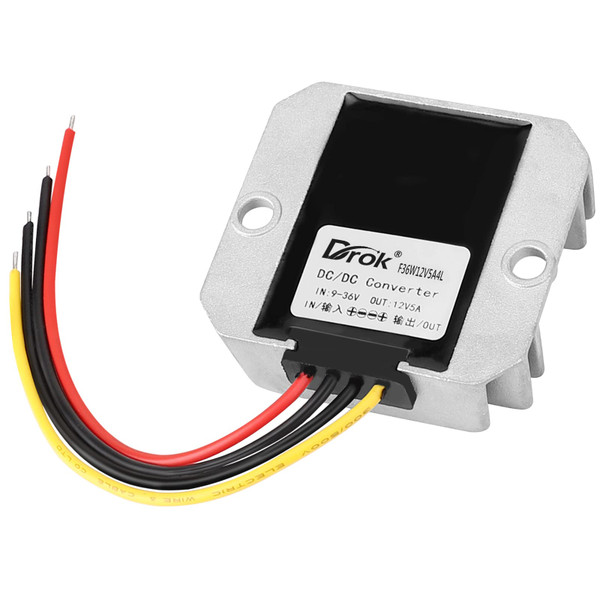

Product Overview
Brand: DROK
Color: Aluminium Shell
Features:
- PARAMETER --- DROK DC-DC converter input voltage range is DC 9-36V (9V 12V 24V 36V); output voltage is DC 12V; maximum output current is 5A; output power is 60W.
- APPLICATION --- the 12v buck boost converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.
- PROTECTION --- this voltage stabilizer comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.
- FEATURE --- the step down power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 90% and low heat generated.
- NOTE --- Leave a margin for the power supply to ensure it can long-term stably working. This is non-isolated module, the ground wires can be tied together.
Details: DROK DC to DC Power Supply Stabilizer Module Technical Specification: Input Voltage: DC 9V~36V (9V 12V 24V 36V) Output Voltage: DC 12V Output Current: 5A Output Power: 60W Conversion Efficiency: >90% No Load Voltage Range: Set voltage ±3% Load Regulation: ±3% Quiescent Power Dissipation: <10mA Operating Temperature: -25~65℃ Storage Temprature: -40~80℃ Operating Humidity: 10%~90% Waterproofing Grade: IP67 Over-current Protection: Yes Over-temperature Protection: Yes Short-circuit Protection: No Dimension: 2.24*1.54*0.87 inch Installation Ear Diameter: 0.16 inch Note: 1. Connect the wiring in strict according with the wiring instruction. 2. Use short and thick input & output wire to ensure output enough voltage and power. 3. If there are multiple output wire, do not combine the load. 4. Leave a margin for the power supply to ensure it can long-term stably working. Package Included: 1x DC-DC Stabilizer
