Product Overview
Brand: CNCTOPBAOS
Features:

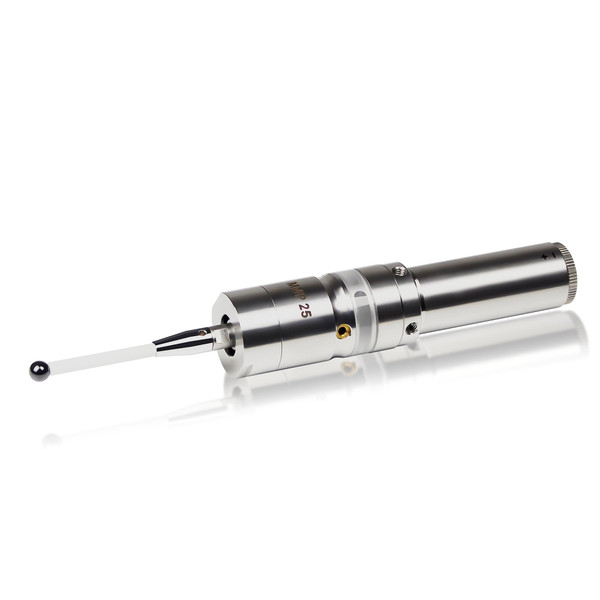

- Product: The 3D edge finder supports X,Y,Z three-coordinate direction measurement,reciprocating positioning accuracy ≤ 0.001mm; Probe direction: +-X +-Y +Z; Probe safety stroke: X.Y plane +-15°; Z direction +5mm; Trigger life:5,000,000 times
- Measurable insulating material: Metal, bakelite, wooden board, plastic, etc
- High accuracy: The measurement accuracy ≤ 0.001mm, and the repeatability ≤ 0.001mm; The edge finder adopts a sturdy sealed shell, and the body is made of stainless steel with a ceramic ball head; It has good structural stability, excellent performance, and high measurement accuracy
- No need for conductivity: The principle of conductivity is not required. The workpiece material and the machine tool spindle are not conductive and can also be measured
- Applications: Widely used for positioning and measurement of CNC lathes,milling machine etc,exceeding the safety range may damage the probe and probe,and does not support the detection of insulation materials and insulated machine tools
