Product Overview
Brand: JKLESA
Color: Silver
Features:

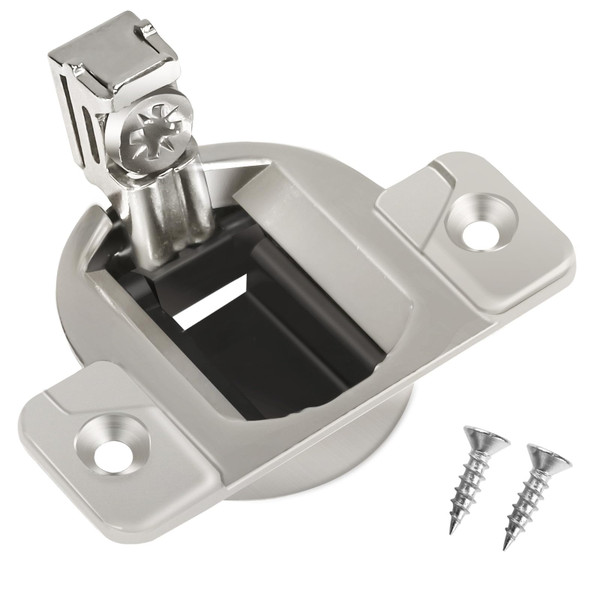

- PERFECT COMPATIBILITY: 110-degree screw-in self-closing compact 33 hinges are designed to replace original Blum cabinet hinges. Perfect fit for blum compact 33 & 31 mounting plates: 130.1100.24, 130.1100.23, 130.1100.26, 130.1100.22, 130.1110.02, 130.1120.02, 130.1130.02, 130.1140.02, 130.1150.02, 130.1160, 133.0240, etc. The new and old hinges may look different, but they function the same. This 30.310-11.02 compact 33 hinge also replaces 32.160-01.01, 30310-1102, 32.160, 30.460, 32.460, 32.260, 30.310, and PA66 hinges
- PRECISION DESIGN: The replacement parts of blum 30.310-11.02 hinge are precision die-cast with high-quality stainless steel and high-strength zinc alloy, which have excellent durability. Its surface is electroplated with a 12μm-thick nickel layer and has passed the rigorous 100,000 opening and closing cycle test
- EXTRA LONG SERVICE LIFE: The 110-degree cabinet hinges are designed to have a service life of up to 30 years (calculated based on an average of 20 openings and closings per day). The built-in oil-containing bearing and PTFE wear-resistant coating design ensure smooth and stable long-term use, and the maximum load-bearing capacity can reach 3.5kg (safety factor 2.5 times). Especially suitable for high-frequency use scenarios such as kitchen cabinets and bathroom cabinets, the compact 33 hinge structure design effectively reduces wear and extends service life, making it an ideal choice for people who pursue quality and durability
- INSTALLATION SPECIFICATIONS: This 30.310-11.02 cabinet hinge is suitable for doors with a thickness of 16 mm to 19 mm (approximately 5/8 inches to 3/4 inches). The hinge is installed in a 35 mm (1-3/8 inch) diameter cup on the back of the cabinet door, and the cup depth is 1/2 inch. For all applications of this hinge, the hole spacing (i.e, the distance from the edge of the 35 mm cup to the edge of the door) is 1/8 inch
- ADJUSTABILITY: Once installed, you have the flexibility to adjust your replacement for blum 110 cabinet hinges. The side-to-side adjustment range is plus or minus 1/8 inch, and the height adjustment range is plus or minus 9/64 inch, allowing you to fine-tune the fit of your cabinet door
- QUICK INSTALLATION : 110-degree cabinet hinges are very easy to install. Use a standard Phillips screwdriver to replace the old hinge. The replacement cabinet hinges are carefully designed to fit snugly on the cabinet's mounting plate and precisely install onto the original cabinet base. If this is your first time replacing a cabinet, you can watch the YouTube video and follow the installation steps. Soon you will have a brand new cabinet door, upgrading not only the hinge, but also the experience of using it for the next 30 years
UPC: 721410661291
EAN: 0721410661291
Release Date: 20-05-2025
