Product Overview
Brand: Weasch
Features:

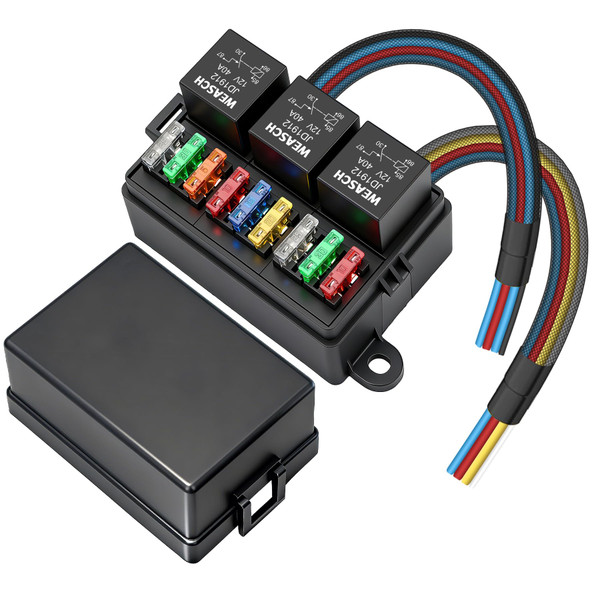

- Specifications: This 12v relay box package includes 3pcs 4Pin 40A JD1912 Relays, 9pcs 5A, 10A x 2, 15A, 20A, 25A x 2, 30A x 2 ATC/ATO blade fuses. You can replace these fuses according to actual needs
- Pre-Wired: 30 Power input pin is 4mm² red wire, handling about 25~32Amp; 87 Normally open output pin is 2.5mm² yellow wire, 16~25Amp; 85 Control positive pin White and 86 relay Parallel black is 0.75mm² wire 3~6Amp; 86 Control negative pin is 1.5mm² black wire 10~16Amp; Fused out is 2.5mm² blue wire 16~25Amp. Refer to the wiring diagram for details, Please carefully check if the wire gauge meets your requirements before purchasing. We also offer a wireless version for DIY projects
- Dustproof: This fuse relay box includes a top cover and bottom cover. Can block most dust from entering the 12V relay box, and protect electrical components from being touched by wires, effectively improving usage safety. Note: No waterproof bottom, Don't completely immerse the product in water!
- Double protection: The relay box is equipped with 9 fuse slots, 3 of which are wired in series with the relays to provide double overcurrent protection for the circuit. Protecting your equipment from damage and ensuring electrical safety
- Application: This fuse relay box is suitable for allmost types of vehicles, including 4x4s, Jeep SUVs, UTVs, ATVs, RVs, pickups, trailers, campers, boats, etc. It provides a versatile solution for managing electrical systems in a variety of vehicles, ensuring reliable performance and electrical safety
- ! Attention: Fuse box dimensions 134mm x 70mm x 80mm (5.28″ x 2.76″ x 3.15″), Please ensure you have enough space to install the fuse box before purchasing
