Product Overview
Brand: SICWOOD
Features:

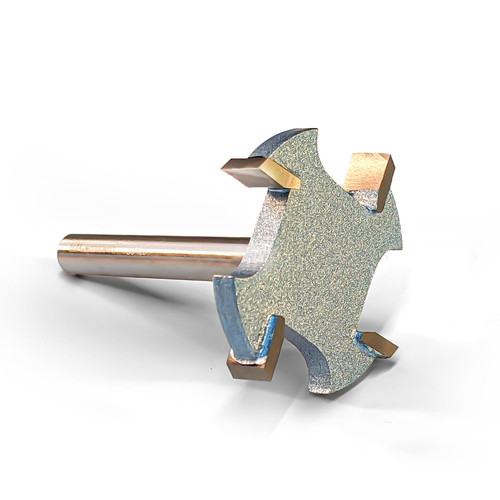

- DLC Coated Blade: SICWOOD slab flattening router bit with 1/4 Inch shank, 1-1/2" Cut Diameter, Carbide Inserts: above part 14*14*2 mm, side part 12*12*1.5 mm, 2+2 Knife Design, The Max RPM 18,000, the universal Inserts provide on asin "B0CZ8YX6RM, B0CZ8WLD4C"
- 2+2 Knife Design: SICWOOD cnc surfacing router bit uses DLC Diamond coating, high hardness and sharpness, smoother cutting, 2+2 knife design ensures a balanced cut for a smoother finish with less vibration, removing large amounts of material quickly, creating a perfectly flat surface, 2.5 times longer life
- Product Highlight: with DLC-Coated SICWOOD Slab Flattening Router Bit, DLC (Diamond-like Carbon) coating is a premium carbon-based film, superior wear resistance, and an ultra-low friction coefficient, Carbide cutting edges with DLC coating supercharge your routing, extend service life, Engineered to deliver consistent, high-quality results
- Efficient & Economical: This slab flattening router bit with replaceable DLC Coated 4-sided carbide Inserts, more Durable and Sharp than other carbide blade, longer life, it is a cost-effective solution.
- Cutting Material: Used on planing and rabbeting the following materials: MDF/Plywood /Chipboard /Plastic /Acrylic / Fiberboard/Balsa/HDU Board /HDF/LDF / Epoxy (Epoxy Resins) / Hardwood/Softwood
- Applicable Equipment: Use on router sled for flattening slabs, and other CNC machine. Make sure that your router sled rails are fully stable and squared, Make sure the screws are tight
- About speed: the max RPM allowed 18,000, Plywood/Chipboard RPM 18,000 / IPM 290" / Chip Load Per Tooth 0.0081", Hardwood RPM 18,000 / IPM 240" / Chip Load Per Tooth / 0.0067", MDF RPM 18,000 / IPM 480" / Chip Load Per Tooth / 0.014", Softwood RPM 18,000 / IPM 600" / Chip Load Per Tooth / 0.016", Plastic RPM 18,000 / IPM 380" / Chip Load Per Tooth / 0.0011"
