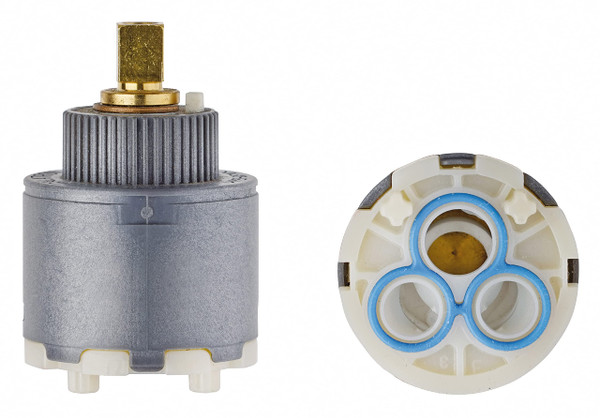

Product Overview
Brand: PAINI
Color: Gray
Features:
- Visit Paini site to find out the cartridge code or screw fitting your mixer/tap
- Diameter 35
- Rotary diverter
- 2 outputs
- With intermediate closure
Details: Compatible with paini series: fluxio: 43cr136th - 43cr145th - 43cr146th - 43cr691th cox: 78cr136th - 78cr691th - 78cr145th dax: 84cr691th lady: 89cr691th morgana: 73cr433v. r - 73cr691th tubos: 79cr691th ovo: 86cr691th arena: 92cr691th product code: 56 cc956dev35 compatible with jacuzzi taps piralla code 115044 technical specifications / technical specifications diameter / diameter 35 mm type of diverter / closed type of diverter / closed number of outputs / outlets 2 temperature water max max 2Usage / water max temperature of use 85° recommended water temperature / recommended water temperature 65° water inlet / water inlet from the bottom / water outlet from the bottom / from bottom flow rate see table / flow see table static pressure max / static pressure max 25 bar working pressure / work pressure 1 ÷ 5 bar international regulations / international regulations 200 - 200.0. 000 cyclnF077EAU-U3 - 500,000 cycles ASME A.112.18.1 / CSAB125.1 / 500.000 cycles torque tightening / torque tightening brass nut 10 nm Customizable lever type / kind of rod metal / metal broach material used for body / body material psu u. +10%Fiberglass Food Certifications / Food Regulations Wras / KTW / ACS / W270 No. Packaging pieces / No. of pieces for package 100 / 150 / 200 kinematics of diverters/cinematic diverters opening angle of the lever / opening angle of the lever n.a. Lever rotation angle / angle of the lever rotation 90°+90° opening moment / opening torque open/closed n.a. Moment rotation/turn left/right torque 0.2 nm Technical Data Ceramic/Ceramic Disc Technical Data Material / Material A2 O3 - 96% Surface Roughness / Surface Roughness 0.05 - 0.25 Micron Surface Contact Area / Surface Contact Area 50% - 80% Flow Rate Tests 3 Bar / Flow Rate Tests 3 Bar Single Channel / Single Channel L/M in a restrictor 13.1 b restrictor n.a. C restrictor n.a. D restrictor 21.3 free flow 27.5 optionals / flow closure features / flow rate closing positions with shared outputs / positions with shared ways no fastening handle with broach or framework / broach or squared lever si number of bottom feet / number of the case back legs 2 distributor / distributor no.
EAN: 8000177160066
