Product Overview
Brand: HZ-MONSTAR
Features:
- Compatibility: The 4021-736 Pilot Assembly compatible with pre-serial # GA1551065/GA1587915 models: compatible with Heatilator: BCBV36, NB3630, ND4842M, etc. compatible with Heat N Glo: AT-Grand-B/C/D, 6000TRB, 8000TVC, SL-750TRFL, etc. compatible with Quadrafire: QV32, QV36D, QV-Pier, etc.
- Replace Number: Natural Gas Pilot Assembly is a replacement part of OEM 4021-736 replacement for 4021-736 pilot assemblies, compatible with Heat N Glo (SRV4021-736/SRV485-510A), Heatilator (2103-010), and Quadrafire (QV Series).
- Dimension: Natural gas pilot assembly 4021-736 thermocouple is 27.5 inch, thermopile is 36 inch, pilot tube is 26.5 inch and ignitor wire is 24 inch. This pilot assembly kits include the bracket that goes next to the burner which holds it all together.
- Note: This 4021-736 Natural Gas (NG) Pilot Assembly is used for indoor natural fireplace, and connect with Main control thermostat valve. This has a top mount bracket to attach it to the fireplace. Look at your bracket to ensure it is the same.

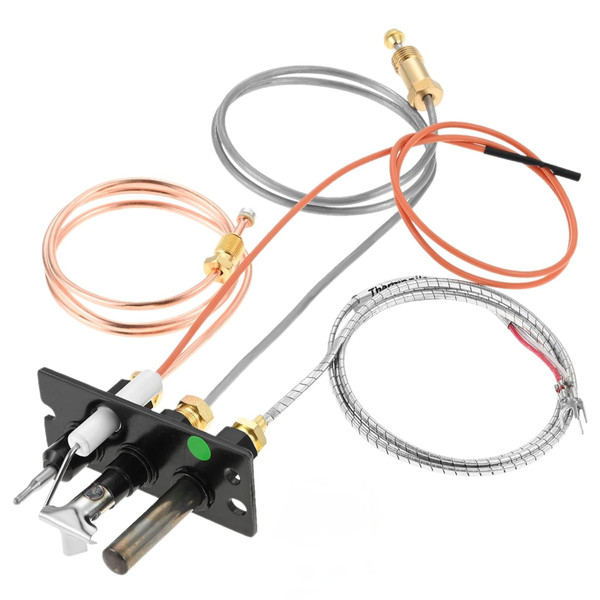

- Package Include: 1Pc x 4021-736 Pilot Assembly Repair Kit. This Kit includes the thermopile (main valve sensor), fine thread thermocouple (pilot sensor), ignitor wire and ceramic probe, and the pilot tube.
