Product Overview
Brand: HUAREW
Color: Black
Features:

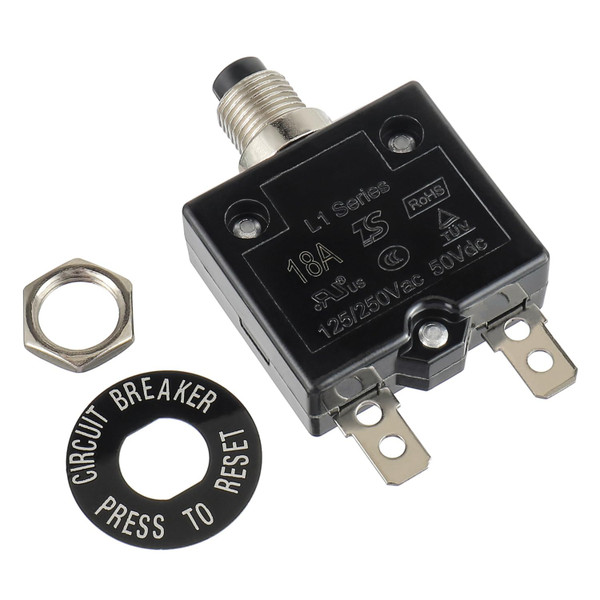

- 【Product】Compact, single pole, push-to-reset thermal circuit breakers, Thermal Overload Protector L1 Series.
- 【Parameter】voltage：125/250V AC, 50V DC; Current: 18A; Operating Temperature: -10℃ (14℉) to 60℃ (140℉); Interrupt Capacity: 1,000 Amps.
- 【Application】Widely used in household and commercial appliances, transportation, marine, telecommunications, power strips, audio-visual, medical, power supplies, industry and ocean industry.
- 【Working principle】This switch can be reset after being disconnected for a period of time, and then pressed to reuse it. When the load exceeds the rated current, the switch reset button will automatically cut off the circuit, thus playing a role in protecting the circuit.
- 【Easy to operate】：After the automatic trip, simply press the reset button on the top of the breaker to reset for normal use, easy to operate.Retained the flexibility of manual operation.
Details: ?HUWREW 18 Amp Push Button Circuit Breaker 125-250V AC 50V DC L1 Series Manual Reset Thermal Circuit Breaker 18A Thermal Overload Protector? ?Specifications: Series: L1 Item Type: Push-button Thermal Circuit Breakers Voltage: 125/250V AC; 50V DC Rated current: 18A Reset type: Manual reset Operating temperature: -10℃ (14℉)~ 60℃ (140℉) Interrupt capacity: 1000 amps Size: 35 x 31 x 14mm/1.38 x 1.22 x 0.55" ?Application: Fits For Most Brand HVACs. Widely used in heating and cooling equipment, household and commercial appliances, small power generators, air compressors, cars, electric vehicles, power tools, transportation, marine etc. ?Package included: 1 x Manual Reset Thermal Circuit Breaker 18A 1 x Hex Nut 1 x Grip Nut Ring
UPC: 791162825876
EAN: 0791162825876
