Product Overview
Brand: N8LokNLok
Color: White
Features:

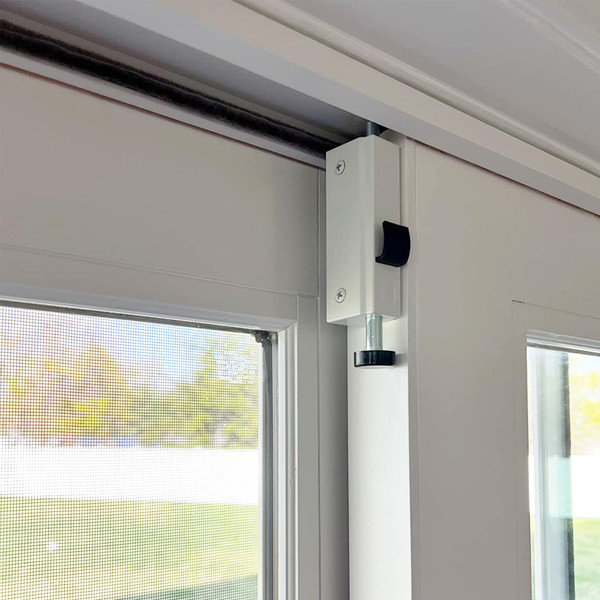

- This Guide is Intended for Installing Footbolts on Gliding and Sliding Doors: NOT universal, fit for Andersen Gliding Patio doors only due to product design.
- 1. Close the door or window all the way so it is in the locked position. Place the footbolt flush against the edge of the inside moving door or pane so it sits perpendicular to the floor.
- 2. With the rod retracted, place the footbolt so the bottom of the rod is 3/32” above the sill.
- 3. With a 3/32” drill bit, drill holes 1/4” deep where the screw holes sit when the lock is in position. Insert the screws and securely affix the bolt to the sliding door.
- 4. Keeping the door or window completely shut, lightly tap the top of the footbolt with a hammer so as to create an indentation on the sill of the window to mark where you should drill the hole for your footbolt.
- 5. Release the rod of the footbolt and remove the moving door. With a 1/2” drill bit, drill a hole for the rod to extend into.
- Note: The entire process can also be replicated for an open vent position instead of a locking position if required. Instead of closing the door entirely, open it to the desired position and drill the hole at that point in the sill instead.
