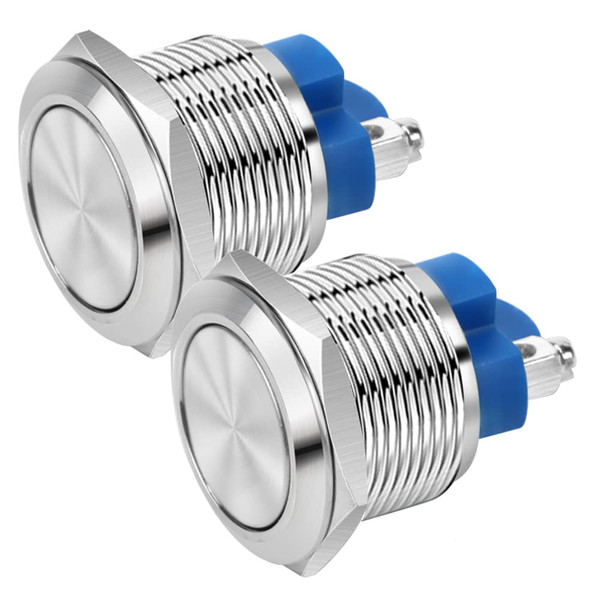

Product Overview
Brand: Gebildet
Color: silver-E446
Features:
- 100% brand new and high quality.
- Momentary Type: Push & Hold-ON, Release-OFF.
- Instantaneous button mounting hole: 22mm; Push buttons hole thread:1mm.rated current and voltage: 12V/24V/125V/250V/2A,easy to Install: Screw type terminals, don't need to solder.
- Universal fit all 12V Car SUV truck conversion Van RV Boat Yacht. Great for electromagnetic starter, relay, Horn Button, PC Power Switch or any circuit controls.
- 2pcs metal Momentary push buttons with IP65 protection: waterproof and rust proof, can be used in wet or dusty environments.
Details: * Color: Silver * Material: nickel plated brass+stainless steel * Head Shape: Flat Head * mounting hole: 22mm * Push buttons Hole thread:1mm * Terminal Type: Screw * Operation Type: Momentary * Button Max Rating: 12V/24V/125V/250V/2A * Protection Level: IP65, IK10 * Operation Temperature: -20℃ to +55℃ * Contact Resistance: ≤50mΩ * Insulation Resistance: ≥1000mΩ * Mechanical life: >500,000 times * Electrical life: >50,000 times Package includes: 2 × Metal Push Button Notes: 1.These buttons come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water. 2.Screw type terminals, don't need to solder. 3.Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
