Product Overview
Brand: Thincol
Features:
- TEMPERATURE AND HUMIDITY SENSOR PROBE -- good stability, high resolution temperature and humidity sensor, low loss, high accuracy, has a variety of uses.
- OUTSTANDING FEATURES -- digitization, resolution up to 14 bits, internal brake calibration, close combination of temperature and humidity for easy exposure measurement, and easy integration of the I2C serial interface.
- HIGH PRECISION -- humidity ±4.5%, measuring range 0～100%RH; temperature ±0.5℃, measuring range -20℃～100℃; supply voltage range DC 2.4-5.5V, interface is Digital Sbus, basically realize self-test and monitor temperature And humidity.

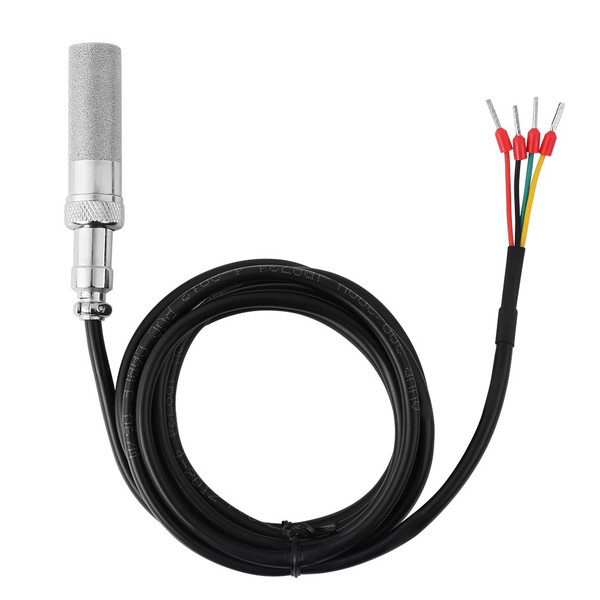

- HIGH-QUALITY PROBE -- The probe with a copper--plated protective cover can be inserted into a hole with a diameter of 12mm. At the same time, it is equipped with a standard 1.5M (60Inch) extension cable with terminal connectors for easy wiring.
- WIRING INSTRUCTIONS -- The red VCC line is connected to the positive pole of the power supply, the black GND line is connected to the negative pole of the power supply, the green DATA line is connected to the data port, and the yellow SCK line is connected to the clock interface.
Details: Descriptions: Soil temperature and humidity probe using the original temperature and humidity sensors as the core component, can be directly connected to the single-chip microcomputer to use .With very high consistency, can be completely interchangeable. the probe has the characteristic of temperature resistance, pressure resistance, loss of ability, suit to the agricultural greenhouse, flowers, nursery garden, lawn and other need detection of soil temperature and humidity environment occasions. Specifications: Model: FS200 - SHT10 Type: temperature and humidity Production process: integration Output signal: numeric type Technical parameters: Working voltage: 3.3-5V Operating current: ≤15mA Temperature measuring range: - 20 ℃ ~ 100 ℃ Humidity measuring range: 0 ~ 100 % RH Working conditions: - 20 ℃ ~ 90 ℃, 0 ~ 99% RH Storage conditions: - 20 ℃ ~ 80 ℃, 0 ~ 95% RH Weight: 70g Package Included: 1 x FS200-SHT10 Soil temperature and humidity sensor
UPC: 711632324821
EAN: 0711632324821
