Product Overview
Brand: Kaleinavi
Color: white
Features:
- wide voltage input: DC 12V-36V, channel:4 channels, coding method: Learning code, remote distance:300m (in the free field) wireless control, easy to install. The range is about 500-1000m in the open air, it can simply pass through walls and so on. But please note: trees, walls or other obstacles will shorten the range.The product has 6 working modes.
- Signal stability and range: RF remote control uses RF technology and stable signal. The signal from the wireless RF switch can be routed to walls, floors and doors, and continuously control the receiver from any position with a reliable distance.The product has 3 working modes, you can adjust according to your own needs. The product is a relay output that can control devices with different voltages.
- Pairing and testing: Before delivery, our technicians have paired and tested the remote control and receiver. When you receive it, you don't need to perform any other operations, just install it through the Wiring diagram. If you don't know how to connect, please contact us and we will reply to your message as soon as possible. We provide you with 1 year warranty and technical service.
- Easy to control+Dry contact signal: You can learn multiple remote controls, and multiple remote can control one receiver. No interference: Using digital coding, the products will not interfere with each other in the same environment where multiple groups of products of the same model are used. The radio receiver is a relay output/potential free, with NO, NC, COM, （Normally open+Normally closed+Common terminal）.
- The product has stable performance, small size and high receiving sensitivity. It has a wide range of uses, especially suitable for wired door and window control systems and anti-theft alarms to realize the switch from wired to wireless systems.Used in industrial control and security fields: such as lamps, electric doors, winches, motors, lifters, gates, remote controls, etc.

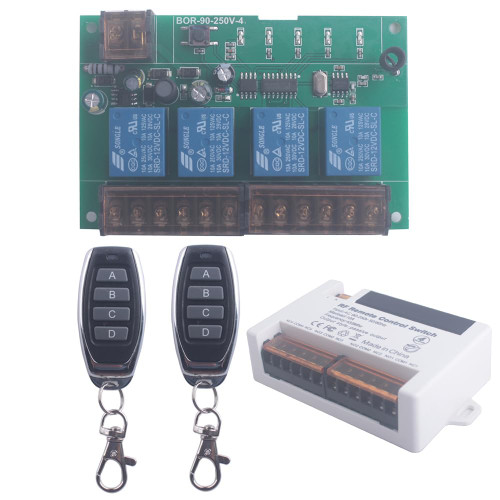

Details: Package Include 1* Receiver (with cover) 1* Remote Control (with battery, If you need extra remote control, please tell us. ) 1.Working Voltage: DC12V-36V 2.Current:Standby less than 10mA,Working less than 128mA 3.Working Temperature: -10'C—+60'C 4.Receiver Frequency: 433.92MHZ 5.Receiving Sensitivity: -105dB 6.Output State: Switching Value 7.Max Load:10A Relay, Resistive load less than 8A,Inductive load less than 3A 8.Case Size:96* 80 * 29mm Encoding Type: Learning Code Add transmitter by the Learning Button on the receiver explanation working modes Momentary: Press the transmitter button A,the receiver relay A is ON; Release button A ,The receiver relay A is OFF ,The same as B/C/D Toggle: Press the transmitter button A For 1 time ,the receiver relay A is ON; Press button A again,The receiver relay A is OFF ,The same as B/C/D Latched:Press transmitter button A,the receiver relay A is ON,the relay B/C/D is OFF.... Press transmitter button D,the receiver relay D is ON,the relay A/B/C is OFF set working mode:Working way changed by Learning button Momentary: Press the Learning Button 1 times. Relay: Press and hold -> On; Release -> Off. Toggle: Press the Learning Button 2times. Relay: Press -> On; Press same button again -> Off· Latched:Press the Learning Button 3 times. Relay: Press -> On; Press other button -> Off. 2channel Momentary+2channel Latched: Press the Learning Button 4 times. 2channel Momentary+2channel Toggle: Press the Learning Button 5 times. 2channel Toggle+2channel Latched: Press the Learning Button 6 times. About Learning and clearing Method: Learning: Press learning button, the indicator flashes and OFF, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times press the learning button according to the working way you need) Clearning: Hold press learning button about 8 seconds,indicator light flashes several times and off,then press remote ,Relay did not Respond ,it means clearning code successful.
