Product Overview
Brand: DIYmall
Features:
- ESP32 programming test board burning fixture can be used for burning: ESP32-WROOM-32D, ESP32-WROOM-32E, ESP-S2-WROOM, ESP-S3-WROOM, ESP-32S, XH-S3E
- XH-S3E N16R8: ESP32-S3R8 SoCs embedded, dual-core 32-bit LX7 microprocessor, support RTC frequency up to 240MHz
- XH-S3E N16R8 Memory: 384 KB ROM, 512 KB SRAM, 16 KB SRAM in RTC, SPI Flash: 16 MB, PSRAM: 8 MB
- Wi-Fi: 802.11 b/g/n; Low power BLE: BLE 5, BLE mesh
- Peripherals: PWM/ I2C/ UART/SPI/SDIO / IrDA

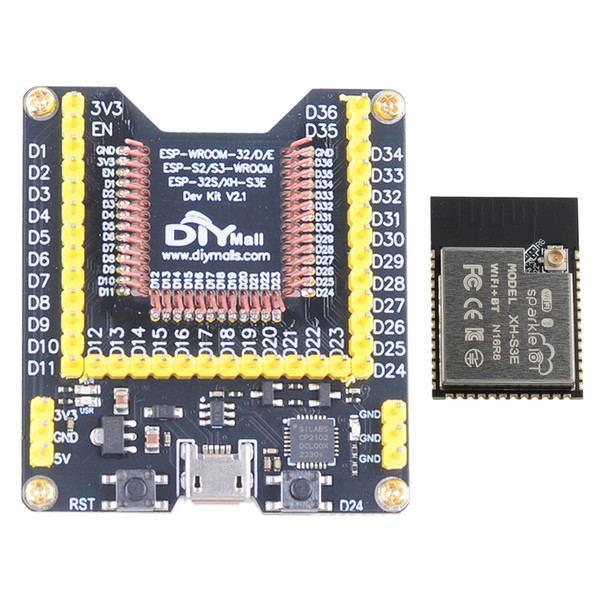

- What you will get: 1 x ESP32 Programming Module Test Board Burning Fixture + 1 x XH-S3E N16R8 Wi-Fi BLE Module
Details: ESP32 Programming Module Test Board Burning Fixture System Development Board Used for burning: ESP32-WROOM-32D ESP32-WROOM-32E ESP-S2-WROOM ESP-S3-WROOM ESP-32S XH-S3E XH-S3E N16R8 Feature: CPU and On-Chip Memory ESP32-S3R8 SoCs embedded, dual-core 32-bit LX7 microprocessor, support RTC frequency up to 240MHz Operating voltage: 3.0V ~ 3.6V 384 KB ROM 512 KB SRAM 16 KB SRAM in RTC SPI Flash: 16 MB PSRAM: 8 MB Peripherals: PWM/ I2C/ UART/SPI/SDIO / IrDA Wi-Fi 802.11 b/g/n Bit rate: 802.11n up to 150 Mbps Support A-MPDU and A-MSDU aggregation Support max 18dBm output power in 802.11b mode Support STA/APO/STA+AP working mode Center frequency range of operating channel: 2412 MHz ~ 2484 MHz BT Low power BLE: BLE 5, BLE mesh Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps Advertising extensions Multiple advertisement sets Channel selection algorithm #2 Peripherals GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter, LED PWM, USB 1.1 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, ADC, touch sensor, temperature sensor, timers and watchdogs Operating temeprature: -40°C ~ 105°C Module size: 18x25.5x3mm Module power supply:3.3V Wi-Fi module IO max output current: 12mA Wi-Fi module RST pin low level active Wi-Fi module connected to the external MCU: RXD to TXD, TXD to RXD FLASH download mode: IO0 is at low level, the module is reset and powered on; normal working mode: IO0 is at high level, the module is reset and powered on Application: Smart Home Smart Building Webcams Wearable Electronics Wireless Location System Beacons Industrial Wireless Control Generic Low-power IoT Sensor Hub Smart Agriculture Smart Bus Wi-Fi-enabled Toys
