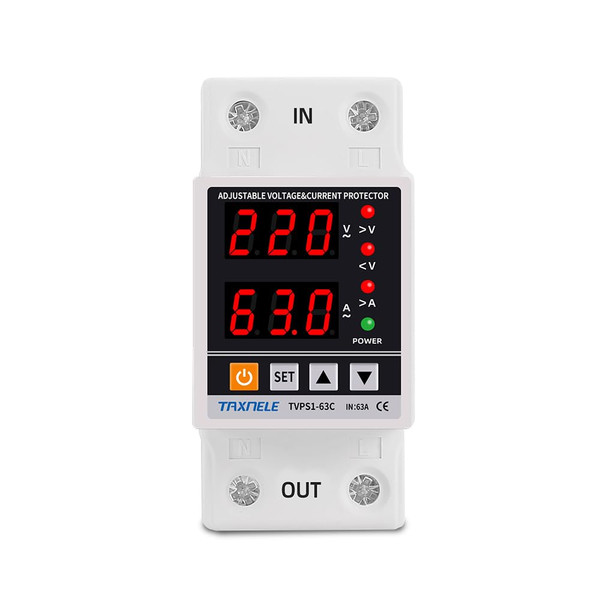

Product Overview
Brand: TAXNELE
Color: White.
Features:
- 【Main function】When the line has overvoltage or undervoltage, over-current condition, the product can cut off the power instantly, protect electrical equipment from damage.
- 【Auto Recovery】When the voltage and current of the line return to normal, the protector can automatically and normally
- 【Adjustable setting】Overvoltage value, undervoltage value, over-current protection and fault recovery time are adjustable
- 【Good performance】Durable and low power consumption and long mechanical life. Dual LED display, this protector can display voltage, current.
- 【Voltage Current Correction】 If the voltage and current are not accurate, you can correct the value from -9.5% to 9.5%
Details: 1.Surge protection 2.Under voltage protection 3.Over current protection 4.Auto Recovery 5.Voltage display (voltage measurement) 6. Current display (current measurement) 7. Voltage Calibration: Voltage +-10% adjustable A13 8. Current Calibration: Current +- 9/5% adjustable A15 9. Reset to factory settings: press down button for more than 12s 10.Fault search: Press the UP button from more than 12S Product parameters: 1. Model Number: TVPS1-63 2. Power supply: 230 VAC 50/60 Hz 3. Maximum load power: 1~40A adjustable (default: 20A) 1~63A Adjustable (Default: 40A) 1~80A Adjustable (Default: 60A) 4. Surge protection value range: 230V~300~OFF (default:270V) Surge Recovery Voltage Range: 225V to 295V (Default 250V) Surge protection action time: 0.1s to 30s (default: 1s) Overvoltage recovery time: 1s ~ 500s (default: 30s) 5. Undervoltage protection value range: 140 V--210 V --OFF (default: 170 V) Undervoltage Recovery Voltage Range: 145V--215V (Default: 190V) Undervoltage protection action time: 0.1s to 30s (default: 1s) Undervoltage recovery time: 1s to 500s (default: 30s) 6 Overcurrent adjustment range: 1-40A (Default: 20A) 1-63A (Default: 40A) 1-80A (Default: 60A) Over current action range: 0.1 to 30 seconds (default: 1s) Overcurrent recovery time: 1s to 500s (default: 30s) 7. Power on delay: 1s to 500s (default: 10s) 8. Power consumption: <2W 9. Service life of electric machines: 100,000 times 10. Installa
