Product Overview
Brand: Cunyuer
Features:

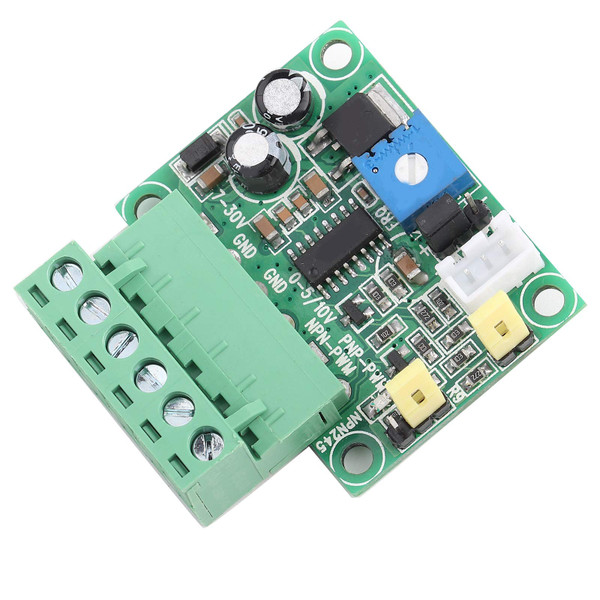

- VOLTAGE TO PWM CONVERTER: This V-PWM module converts 0-5V/0-10V analog input to PWM signal output (2KHZ-20KHZ). Compatible with both new and legacy system designs, it supports two voltage ranges for flexible integration
- CONVERTER MODULE SPECIFICATIONS: Achieves PWM duty cycle accuracy with configurable output frequency via potentiometer. Provides PNP-PWM (5V) and NPN-PWM (5V/24V) outputs for analog to digital audio converter applications
- ADJUSTABLE SIGNAL OUTPUT: Supports direct/inverse ratio PWM conversion with 2KHZ default frequency. Compact design (45x47x18mm/1.77x1.85x0.71in) ensures seamless installation in control panels
- INDUSTRIAL APPLICATION FOCUS: Ideal for automation equipment signal conversion and precision instrument control systems requiring stable voltage-PWM translation
- SYSTEM INTEGRATION PARAMETERS: Designed for industrial control systems with >200mA power input. Lightweight 20g/0.7oz construction meets compliance standards
Details: Specifications: Type: Voltage to PWM signal module Model: V-PWM Input Power Supply Voltage: 7-30V (recommend 15-30V DC) Input Power Supply Current: >200mA Size: Approx. 45 x 47 x 18mm/1.8 x 1.9 x 0.7in Weight: 20g(approx.) Package Includes: 1 x Converter Module Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
