Product Overview
Brand: Criditpid
Color: C-E-017 Auger Motor
Features:

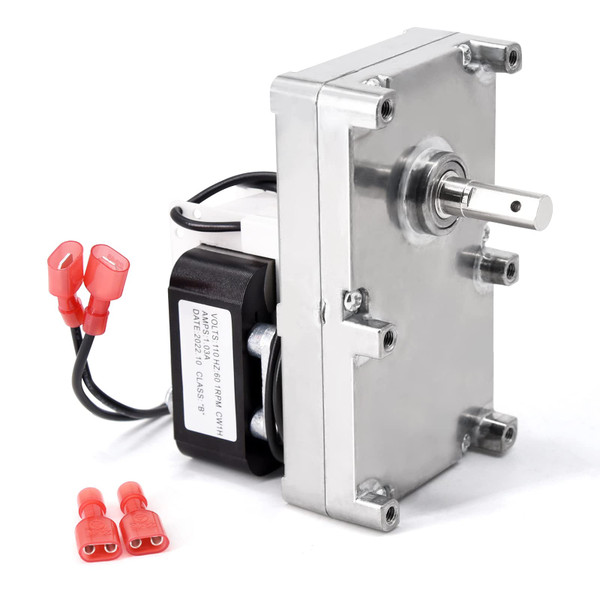

- The C-E-017 Auger Motor Technical Specifications --- ★ Volts: 120 V, ★ Amps: 1.03 A, ★ Cycles: 60 Hz, ★ RPM: 1.0, ★ Direction: Clockwise. ★ Wire Length: 20" with ¼" Male and Female Terminal. ➤ The Breckwell C-E-017 1 RPM Clockwise Auger Feed Motor with Hole in Shaft, Easy to install.
- Compatibility --- ➤ Replacement C-E-017 auger motor for Breckwell Pellet Stove P1000 Big E, P2000 Tahoe(11780 – Present), P2000I Tahoe Insert(22208 – Present), P22 Maverick, P22I Maverick Insert, P23 Sonora(7166 to Present, and Units BEFORE 6332), P23I Sonora Insert(2243 to Present, and Units BEFORE 1916), P24 Blazer(53664 to Present), P24I Blazer Insert(53795 to Present), P2700 Mojave(8445 – Present), P4000 Classic Cast, P7000 Solstic.
- Replacement For Part Number: Breckwell C-E-017, 20275, 80642. High Quality Auger Motor, Powerful, Quiet, Energy Efficient and Long Lasting. 1 year warran/ty.
- High-quality & Easy to install --- ☞The 1RPM Breckwell auger motor is easy to install with 20 inch wire, we provide both male and female spade connectors, depending on your stoves configuration. ☞The CW1H auger motor is made of quality stainless steel, durable material that can be applied for a long time.
- To best determine compatibility, please double check the spacing on your auger shaft. The auger shaft coils will be spaced 1" apart to indicate set up for 4RPM, whereas 2" spacing indicates set up for 1RPM.
Details: The Breckwell C-E-017 is a top quality replacement auger feed motor. This is a sealed bearing 1 RPM clockwise rotation auger feed motor; no lubrication required. This auger motor has a hole drilled to spec in the shaft for securing with a cotter/set pin (not included). Specifications: ★ Volts: 120V ★ Amps: 1.03 A ★ Cycles: 60 Hz ★ RPM: 1.0 ★ Direction: Clockwise ★ Wire Length: 20" with ¼" Male and Female Terminal Replacement for Part Number: C-E-017, 20275, 80642 Compatibility: ➤ Breckwell Pellet Stoves: ◆ SP1000 Big E ◆ SP1002 Big E II ◆ P1000 Big E ◆ P2000 Tahoe – Serial # 11780 – Present ◆ P2000I Tahoe Insert – Serial # 22208 – Present ◆ P22 Maverick ◆ P22I Maverick Insert ◆ P23 Sonora – Serial # 7166 to Present, and Units BEFORE serial # 6332 ◆ P23I Sonora Insert – Serial # 2243 to Present, and Units BEFORE serial # 1916 ◆ P24 Blazer – Serial # 53664 to Present ◆ P24I Blazer Insert – Serial # 53795 to Present ◆ P2700 Mojave – Serial # 8445 – Present ◆ P4000 Classic Cast ◆ P7000 Solstice ★ Please Note: Serial numbers were provided by the factory and are approximate. They may be slightly off either way. To best determine compatibility, please double check the RPMs your control board is programmed for, as well as the spacing on your auger shaft. The auger shaft coils will be spaced 1" apart to indicate set up for 4RPMs, whereas 2" spacing indicates set up for 1RPMs. ➤ Ashley Pellet Stoves: APC4000, C85 ➤ US Stove Pellet Stoves: 5040 Advantage & Benefit: ? High Quality Motor ? Powerful, Quiet, Energy Efficient and Long Lasting.
