Product Overview
Brand: Antrader
Color: White
Features:

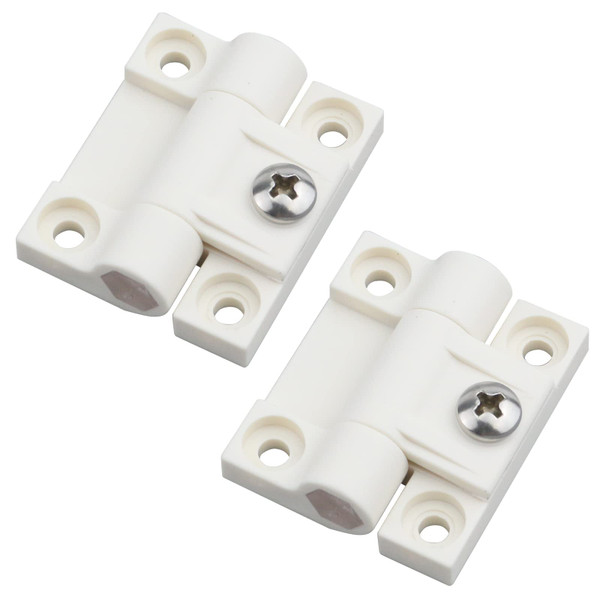

- E6 Adjustable Torque Position White Control Hinge, Pack of 2.
- Total Dimension: (Approx)43 x 36 x 12.5mm/ 1.7" x 1.5" x 0.5"(L*W*T)
- Made of plastic material, longevity, resistant corrosion, good toughness.
- Forward and Reverse Torque: 0.790 Nm (6.99 in-lbf), Torque Type: Symmetric
- Stop positioning at any Angle The positioning force can be adjusted. Screws are included here.
Details: Features: E6 series adjustable torque position control hinge allow users the flexibility to define and adjust the operating effort required to move or position panels. With the turn of a screw, these hinges allow users to define the level of resistance. Once adjusted, the positioning torque stays consistent throughout the full range of motion and will hold doors steady in any position. Industry applications: aerospace; bus; construction equipment, off-highway vehicles, farm equipment; electronic enclosures; exhibits/signs; food equipment; furniture; HVAC; industrial enclosures; industrial machinery, machine tools and metal cutting; lawn/garden equipment; marine and medical. Specifications: Main Color: White Material: Plastic Total Dimension: (Approx)43 x 36 x 12.5mm/ 1.7" x 1.5" x 0.5"(L*W*T) Mounting Hole Size: 4.3mm/ 0.16" Mounting Hole Distance: 32 x 25mm/ 1.3" x 1"(L*W) Hole Quantity: 4 Folded Size: 43 x 24 x 16mm/ 1.7" x 0.9" x 0.6"(L*W*T) Radial Load: 1780 N (400 lbf) Axial Load: 890 N (200 lbf) Operating Temperature Range: 20/150 Degree Fahrenheit Weight: 30g Package Content: 2pcs x Position Control Hinge Note: 1.The colors may have difference as the different display, please understand. 2.Please allow 1-2mm error due to manual measurement, please make sure you do not mind before you bid.
