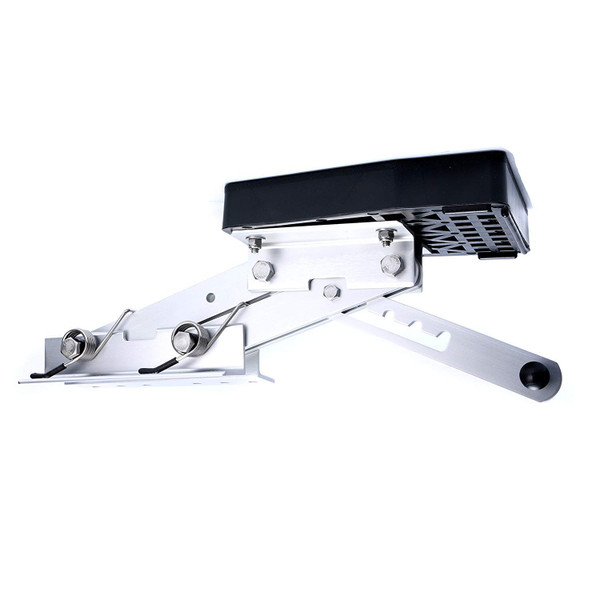

Product Overview
Brand: Amarine Made
Features:
- Retractable bracket for trolling auxiliary motors on power and sailboats with ease, Heavy duty with reinforced welded frame and stamped stainless components
- Suits 2-stroke motors 7 1/2 - 20 HP, with a maximum weight of 52kg (115lbs), Ideal for small to medium sized powerboats and yachts
- Spring loaded (5 vertical position) adjustable bracket, Wide track body for added stability
- Heavy duty, lightweight marine grade anodised aluminium frame, stainless steel springs
- Solid polypropylene mounting board. Easy to lift and lower – heavy duty springs help counterbalance motor weight
Details: Specifications For 2-stroke motors 7 1/2 - 20 HP Stuff: Anodised aluminium construction, solid polypropylene mounting board Board area: 260 x 205mm (10-1/4" x 8") Mount area on boat: 135 x 230mm (5-1/4" x 9") Mount holes: 8mm Lift range: 340mm (13-3/8") Mounting holes have a horizontal distance of 100mm across (centre to centre), and multiple vertical holes for different mounting options It's easy measure the depth from the top rail on the stern to where your prop would be nust below the bottom of the boat. On the floor mount your motor to your new auxiliary mount. Measure from the top of the prop to see what the difference is. Then mount the mount onto the transom so the prop is just below the hull when the aux mount is in the down position. Use 3m 4400 under mount and in the holes for the mounting bolts to seal it hang your motor and move it up and down to make shore its not in a bind.
UPC: 700621158882
EAN: 0700621158882
