Product Overview
Brand: fushionsea
Color: WT-03-grey DGL
Features:
- 【EASY to USE】Working voltage: DC12V-48V; Output voltage: DC12V-48V; Working frequency: 433mhz; Max load current: 30A; about Receiver Size: 1.2*3.6*1.8 IN. We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
- 【SIGNAL Stability】The RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is 20-6000 Foot with no obstacle.
- 【 Application】: It is mainly used in 12V-48V include Anti-Theft Alarms, Security Systems Roller Lind Door,Gate Barriers ,Household Appliances,Pump,Lights Ceiling and Electrical Equipment ,Water Pump, Lamp, Security Systems Garage Door，industrial control and security industry and Various types of electrical equipment other fields
- 【Great Sensitivity】Receiver sensitivity: more than -114dBm （RXB8 receiver module ）, Sensitivity and anti-interference ability far exceed ordinary superheterodyne modules
- 【Working Mode】：we send latched mode default，You can change the working mode yourself（Momentary；Toggle；Latched；Delay time (5seconds)；Delay time (10seconds)；Delay time (15seconds)；Delay time (20seconds)） . Customer satisfaction is our goal，so If you encounter any problems in use, please feel free to contact us any time, we will be happy to serve you, thank you very much

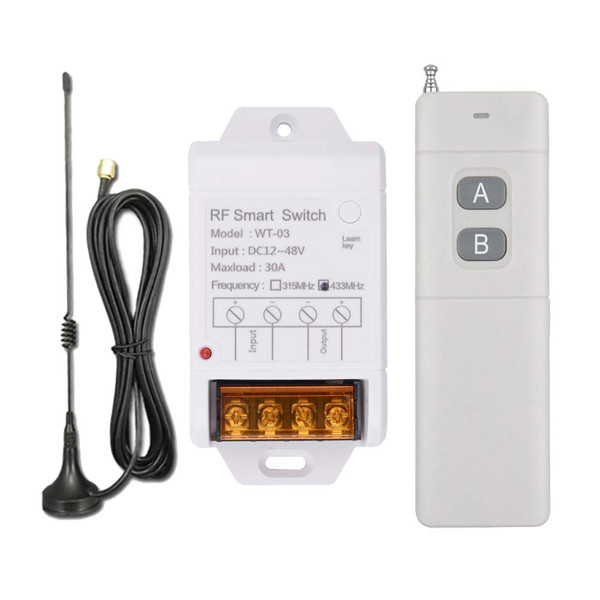

Details: About Receiver: Model No.: WT-03 Working voltage: DC12V-48V Receiver sensitivity: more than -114dBm（RXB8 receiver module ） Output voltage: DC12V-48V Size: 55*110*35mm Max load current: 30A Applications: Water Pump, Motor ,Lamp etc About Working way: Momentary: jumper doesn't connect any two pins. Relay: Press and hold -> On; Release -> Off. Toggle: jumper connects the pin T and pin S. Relay: Press -> On; Press same button again -> Off· Latched: jumper connects the pin L and pin S. Relay: Press -> On; Press other button -> Off. Delay time :Press remote control button, the corresponding relay actuates and keeps working until the time out. Learn method：Input 12V for the Receiver , Momentary: Long press the Learning Button until Led indicator flash 1 time. Then press transmitter, the Led indicator flash for 5times, it mean learning successfully. Toggle: Long press the Learning Button until Led indicator flash 1 time. Then press Learning button 2 times again ,and press transmitter, the Led indicator flash for 5 times, it mean learning successfully. Latched: Long press the Learning Button until Led indicator flash 1 time. Then press Learning button 1 times again , press transmitter A button,the Led indicator flash for 3 times ,Then press transmitter B button,the Led indicator flash for 3 times again,it mean learning successfully. Delay time (5S): Long press the Learning Button until Led indicator flash 1 time. Then press Learning button 3 times again ,and press transmitter, the Led indicator flash, it mean learning successfully. Clearing method :Press the Learning button.Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code About Transmitter: 2 Buttons Remote Distance: 20-6000 Foot Working Frequency :433MHz Package Includes 1 x Transmitter 1 x Receiver 3 meters cable antenna
